Aritco HomeLift
Why Choose Aritco HomeLift
Aritco HomeLift is designed for private homes that prioritise architectural integration and everyday comfort. Its Scandinavian design language allows the lift to blend naturally into contemporary interiors while delivering refined, reliable residential performance.
For a broader comparison, explore our complete range of home lift models.
No Machine Room Required
Designed without a traditional machine room, allowing easier integration into private residential layouts.
Minimal Structural Impact
Requires only limited construction adaptation, making it suitable for both new builds and selected retrofit projects.
Quiet and Stable Operation
Engineered for smooth daily circulation within multi-level homes.
Certified Safety Standard
Built in accordance with EN81-41 European safety requirements for platform lifts.
Design Your Aritco HomeLift
Aritco HomeLift offers flexible design options that integrate naturally into contemporary interiors. Select finishes, colours, and lighting elements to align the lift with your architectural concept. Real project applications and detailed finish references are available for further planning.
Abu Dhabi
Shanghai
Berlin
Stockholm
Diagonal
Geometric Blue
Geometric Classic
Geometric Pink
Keywest
Orange
Orientalic
Pink
Sheets
Skyline
Structure
White
Traffic White
Light Grey
Jet Black
Light Ivory
Champagne
Gold
Bronze
Brown Red

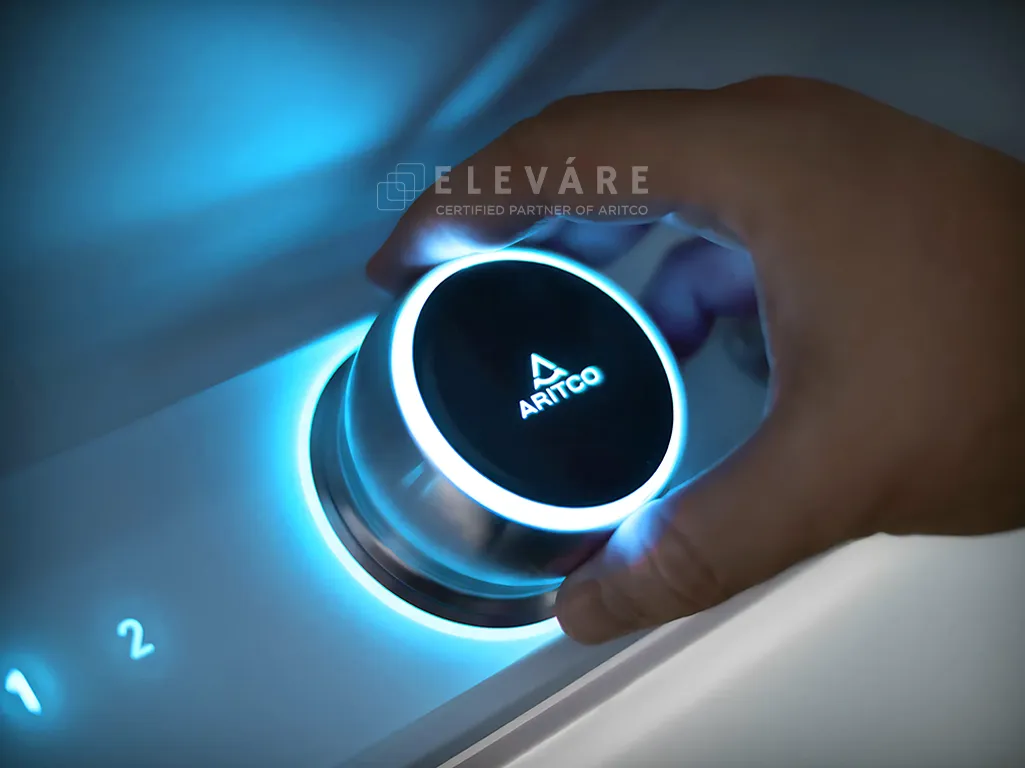

SmartControl for Everyday Living
Aritco HomeLift features an intelligent control system designed for simple and intuitive operation. Through the integrated SmartLift interface, homeowners can monitor lift status and access system information when needed.
The platform also supports remote diagnostics and software updates, helping maintain reliable performance over time while keeping the lift connected and ready for everyday use.
Installation Planning & Consideration
Aritco HomeLift is designed for residential integration without a traditional machine room. Early planning should assess vertical alignment, floor-to-floor height, headroom clearance, and shaft positioning within the intended layout.
For retrofit projects, structural compatibility and spatial verification are recommended prior to specification. Detailed dimensional references are available in our Lift Drawings section.
Technical Specifications
Type of Lift
Home lift intended for installation in private homes.
Technical Compliance
European Machine directive 2 006/42/EC with European standard EN81-41
Drive System
Screw and nut system
Installation
Indoor only
Travel Height
500 – 18 000 mm
Top of Height
Min. 2 225 mm |
Wall extension 2 275 – 4 000 mm
Number of Floors
2 – 6 floors
Installation Method
Recessed installation with 37 mm pit
|
installed directly with a ramp
Control
Automatic-run
Speed
0,15 m/s to 0,30 m/s
Emergency Lowering
Battery-powered
Power Supply
230 V 1-phase
|
400 V 3-phase
Warranty
5-year product warranty
|
10-year drive technology warranty
Size & Capacity
S5 – 600 x 830 mm | 250 kg
S8 – 1000 x 830 mm | 250 kg
S9 – 1100 x 830 mm | 250 kg
S12 – 1000 x 1200 mm | 400 kg
S15 – 1100 x 1400 mm | 400 kg
Safety & Compliance
Aritco is developed in accordance with EN81-41 European safety standards for platform lifts, ensuring certified structural integrity and reliable operation in private residential environments.
Child Lock
Prevents unsupervised operation when required.
Smart Safety
Includes door interlocks, obstruction sensors, and automatic operational safeguards.
Battery Backup
In the event of power interruption, the lift descends safely to the nearest floor.
European Certified
Certified by DNV GL in compliance with EN81-41 for residential platform lift safety.
For a broader overview of safety systems and engineering principles, visit our Technology & Safety page.
Aritco HomeLift Installations
Aritco has been installed in private residences worldwide, demonstrating its adaptability across diverse architectural contexts. Each project reflects integration within residential layouts, from contemporary minimal homes to classical interior environments.
F.A.Q
Can Aritco HomeLift be installed in an existing home?
Yes. it can be integrated into selected retrofit projects, subject to structural evaluation and spatial feasibility within the existing floor plan.
How many floors can this lift serve?
Aritco HomeLift supports multi-level residential configurations, typically up to six floors depending on project requirements and layout conditions.
Does it require a machine room?
No traditional machine room is required, allowing simplified integration within private residential architecture.
What should be prepared before installation?
Project planning should consider lift positioning, floor-to-floor height, power supply access, and early coordination between architect and lift specialist. Dimensional references are available in our Lift Drawings section.
Is this lift compliant with European safety standards?
Of course, it’s developed in accordance with EN81-41 standards for residential platform lifts, ensuring certified safety performance in private homes.
